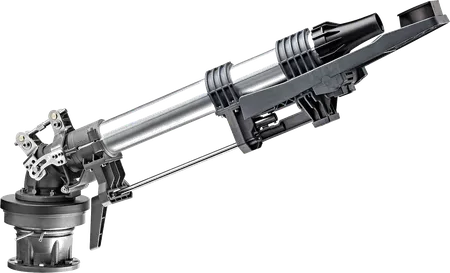

Twin Ultra 202 PC 24°


Engineered for maximum throw, stable rotation and uniform water distribution. The Twin Ultra 202 is Komet's largest big volume gun, performing reliably across changing pressures and the most demanding field conditions.
Wide coverage
With 24 nozzles ranging from 22 to 45 mm, it can irrigate a very large area, reaching a radius of up to ~90 meters at higher pressures.
Flexible trajectory
You can choose a fixed angle or adjust it anywhere between 15° and 45° with the Vari-Angle system, making it adaptable to windy conditions or obstacles like power lines.
Self-regulating operation
The automatic brake system keeps the sprinkler rotating at a consistent speed regardless of pressure changes, so it works efficiently without needing manual adjustments.
Built to last
Top-grade materials from barrel to brake, backed by individual water-testing on every unit before shipment.
Big volume gun applicationsThe Twin Ultra 202 is used where maximum throw and water application must stay controlled across travellers, pivot end guns, and solid-set layouts. It is built to combine reach, application stability, and practical adaptability without adding unnecessary complexity.

These are the core Twin Ultra 202 details taken from the product material. For final sizing, nozzle choice, and field fit, the right setup should always be checked against the technical table and the application.
| Nozzle Sizes | 24 nozzles |
|---|---|
| Nozzle Range | 22.0 - 45.0 mm | 0.87" - 1.77" |
| Flow Range | 32.4 - 235.0 m³/h | 137 - 1032 gpm |
| Throw Range | 41.5 - 90.0 m | 247 - 590 ft |
| Jet-breaker | Optional |
| Available Versions | 24° | Vari-Angle | With Inverter 24° |

The Twin Ultra 202 family covers standard fixed-trajectory use, adjustable trajectory requirements, and timed sector change on travellers. The right choice depends on wind exposure, field boundaries, operating routine, and how much adjustment is needed during the irrigation cycle.
These are the questions that usually come up first in dealer conversations and field planning. The aim is to make selection and setup clearer before final specification.
The Twin Ultra 202 is suited to big volume gun use on travellers, pivot end-gun positions, and solid-set applications. It is used where long reach and stable water application are both important. The product family is also shown for dust control, sports fields, effluent water, feed lots, and other non-crop uses, but final suitability should be checked case by case. The main point is controlled high-capacity application across a broad operating window.
Big volume guns need to match the machine, pressure window, and application target. A local Komet partner can help check compatibility, confirm the right configuration, and support specification, parts, and follow-up questions.
Choose the right Twin Ultra 202 variant for the job.
Confirm nozzle, trajectory, and sector settings before install.
Get help with replacement parts and technical questions.
