The brochure shows an operating pressure range from 2 to 6.5 bar, measured at the nozzle. Twin Max is positioned for strong performance even at lower pressure levels, starting at 2 bar. Actual field results can still vary with setup, water quality, and weather conditions. Pressure should always be checked at the nozzle when reviewing performance data.

Twin Max is available with high performance nozzles from 10 to 24 mm. The right nozzle depends on the required flow, pressure, and target throw radius. Because nozzles are offered in small increments, the setup can be matched more closely to the application target. For final sizing, use the performance table and machine-specific conditions.

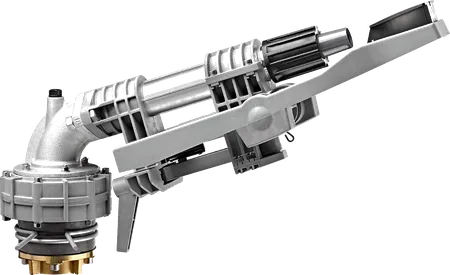

Twin Max is available with fixed trajectory options including 24°, Pivot 18°, and Pivot 12°. The trajectory angle influences throw and how the stream behaves in field conditions. Lower angles can help irrigation efficiency in wind, but they also reduce throw. The best choice depends on the installation point and local operating conditions.

The brochure notes that performance data were obtained under ideal testing conditions and may be adversely affected by wind and other factors. A lower trajectory angle can improve irrigation efficiency in windy conditions. For every 3° drop in trajectory angle, throw is reduced by approximately 3 to 4%. In exposed conditions, this tradeoff should be considered early in selection.

The allowable operating range for Komet products is specified in the technical table. Water hammer can cause damage to both the system and the product. The brochure also notes that such damage is not covered under warranty. Staying within the defined operating range is important for service life and stable application.
